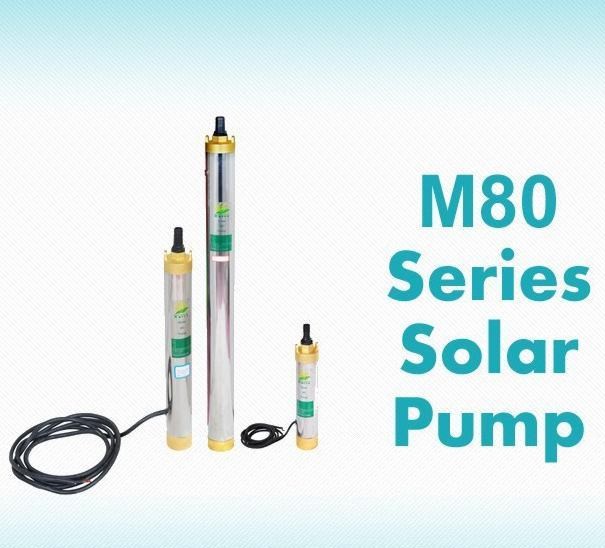

Solar Water Pump M80 Series |
|
Flow |
Intake |
Outlet |
Protection class |
Rotation speed |
|
45L/min |
76mm |
32mm |
IP68 |
18000/rpm |
|
12V (Working voltage: 12v - 18v) |
|
Model |
Head
(M) |
Power
(W) |
Size
(mm) |
Cable length
(M) |
|
M1280-10 |
10 |
132 |
400*76 |
2 |
|
M1280-20 |
20 |
264 |
480*76 |
5 |
|
M1280-30 |
30 |
396 |
580*76 |
5 |
|
24V (Working voltage: 22v - 45v) |
|
M2480-10 |
10 |
144 |
400*76 |
2 |
|
M2480-20 |
20 |
288 |
480*76 |
5 |
|
M2480-30 |
30 |
432 |
580*76 |
5 |
|
M2480-40 |
40 |
576 |
680*76 |
5 |
|
M2480-50 |
50 |
720 |
850*76 |
5 |
|
M2480-60 |
60 |
864 |
950*76 |
5 |
|
M2480-70 |
70 |
1008 |
1050*76 |
5 |
|
M2480-80 |
80 |
1152 |
1150*76 |
5 |
|
M2480-90 |
90 |
1296 |
1250*76 |
5 |
|
M2480-100 |
100 |
1440 |
1350*76 |
5 |
|
48V (Working voltage: 40v - 90v) |
|
M4880-10 |
10 |
168 |
400*76 |
2 |
|
M4880-20 |
20 |
336 |
480*76 |
5 |
|
M4880-30 |
30 |
504 |
580*76 |
5 |
|
M4880-40 |
40 |
672 |
680*76 |
5 |
|
M4880-50 |
50 |
840 |
850*76 |
5 |
|
M4880-60 |
60 |
1008 |
950*76 |
5 |
|
M4880-70 |
70 |
1176 |
1050*76 |
5 |
|
M4880-80 |
80 |
1344 |
1150*76 |
5 |
|
M4880-90 |
90 |
1512 |
1250*76 |
5 |
|
M4880-100 |
100 |
1680 |
1350*76 |
5 |
Copper wire required. (PS: 6mm˛ or
10mm˛ copper
wire is required when the cable length is more than 40m.
Different
models, different prices US $
100 - 500 / Piecе.
|
TYPE
Screw
Pump |
VOLTAGE |
RATE POWER |
MAX FLOW |
MAX HEAD |
OUTLET SIZE |
DIAMETER OF PUMP |
| (v) |
(w) |
(m3/h) |
m |
(in) |
(mm) |
| JS3-0.9-32 |
12 |
100 |
0.9 |
32 |
3/4" |
76 |
| JS3-1.3-50 |
24 |
120 |
1.3 |
50 |
3/4" |
76 |
| JS3-1.8-60 |
24 |
180 |
1.8 |
60 |
3/4" |
76 |
| JS3-1.8-80 |
24 |
210 |
1.8 |
80 |
3/4" |
76 |
| JS3-1.8-100 |
24 |
270 |
1.8 |
100 |
3/4" |
76 |
| JS3-2.1-100 |
36 |
450 |
2.1 |
100 |
3/4" |
76 |
| JS3-2.1-120 |
36 |
540 |
2.1 |
120 |
3/4" |
76 |
| JS3-2.3-140 |
48 |
650 |
2.3 |
140 |
3/4" |
76 |
| JS3-2.3-160 |
72 |
850 |
2.3 |
160 |
3/4" |
76 |
| JC3-2.8-14 |
24 |
140 |
2.8 |
14 |
1" |
76 |
| JC3-2.5-28 |
36 |
260 |
2.5 |
28 |
1" |
76 |
| JC3-3.6-33 |
36 |
320 |
3.6 |
33 |
1" |
76 |
| JC3-2.5-39 |
36 |
400 |
2.5 |
39 |
1" |
76 |
| JC3-4.2-38 |
36 |
440 |
4.2 |
38 |
1" |
76 |
| JC3-4.2-54 |
48 |
600 |
4.2 |
54 |
1" |
76 |
| JC3-2.8-62 |
48 |
600 |
2.8 |
62 |
1" |
76 |
| JC3-3.2-85 |
48 |
750 |
3.2 |
85 |
1" |
76 |
| JS4-3.0-60 |
36 |
450 |
3 |
60 |
1" |
100 |
| JS4-2.5-70 |
48 |
500 |
2.5 |
70 |
1" |
100 |
| JS4-3.6-80 |
48 |
750 |
3.6 |
80 |
1" |
100 |
| JS4-4.0-100 |
72 |
1000 |
4 |
100 |
1" |
100 |
| JS4-3.2-120 |
72 |
1000 |
3.2 |
120 |
1" |
100 |
| JS4-2.5-140 |
72 |
1000 |
2.5 |
140 |
1" |
100 |
| JC4-5.5-32 |
36 |
360 |
5.5 |
32 |
1.25" |
100 |
| JC4-5.8-43 |
36 |
500 |
5.8 |
43 |
1.25" |
100 |
| JC4-3.1-66 |
36 |
500 |
3.1 |
66 |
1.25" |
100 |
| JC4-4.0-60 |
48 |
720 |
4 |
60 |
1.25" |
100 |
| JC4-6.8-60 |
72 |
1000 |
6.8 |
60 |
1.25" |
100 |
| JC4-6.0-88 |
72 |
1000 |
6 |
88 |
1.25" |
100 |
| JC4-8.0-55 |
72 |
1000 |
8 |
55 |
1.5" |
100 |
| JC4-10.0-45 |
72 |
1000 |
10 |
45 |
2" |
100 |
| JC4-14.0-33 |
72 |
1000 |
14 |
33 |
2" |
100 |
| JCS4-5.0-28 |
24 |
250 |
5 |
28 |
1.25" |
100 |
| JCS4-6.0-40 |
36 |
500 |
6 |
40 |
1.5" |
100 |
| JCS4-6.0-52 |
48 |
600 |
6 |
52 |
1.5" |
100 |
| JCS4-7.5-34 |
48 |
750 |
7.5 |
34 |
1.25" |
100 |
| JCS4-5.5-60 |
48 |
750 |
5.5 |
60 |
1.25" |
100 |
| JCS4-10-30 |
48 |
750 |
10 |
30 |
1.5" |
100 |
| JCS4-5.0-128 |
72 |
1000 |
5 |
128 |
1.25" |
100 |
| JCS4-5.5-90 |
72 |
1000 |
5.5 |
90 |
1.5" |
100 |
| JCS4-6.7-88 |
72 |
1000 |
6.7 |
88 |
1.25" |
100 |
| JCS4-7.5-70 |
72 |
1000 |
7.5 |
70 |
2" |
100 |
| JCS4-10-45 |
72 |
1000 |
10 |
45 |
2" |
100 |
| JCS4-15-21 |
72 |
1000 |
15 |
21 |
2" |
100 |
 |
